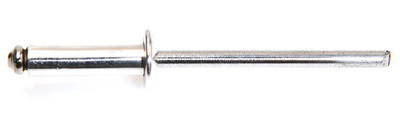

Rivets standard ALX/TRS corps aluminium tige acier zingué
Standard ALX/TRS corps aluminium tige acier zingué
Perçage recommandé à 0,2 mm au dessus du diamètre (d)
Perçage recommandé à 0,2 mm au dessus du diamètre (d)
Affiner les résultats

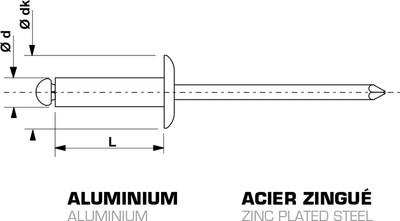

| Référence | Désignation | Diamètre ( mm ) | diamètre (d) x L ( mm ) | épaisseur à serrer ( mm ) | dk max. ( mm ) | Conditionnement ( pièce ) |
|---|---|---|---|---|---|---|
| ALXTRS244 | ALXTRS244 | 2.4 | 4 | 0.5 - 2 | 5 | 1000 |
| ALXTRS246 | ALXTRS246 | 2.4 | 6 | 2 - 4 | 5 | 1000 |
| ALXTRS248 | ALXTRS248 | 2.4 | 8 | 4 - 6 | 5 | 1000 |
| ALXTRS2410 | ALXTRS2410 | 2.4 | 10 | 6 - 8 | 5 | 1000 |
| ALXTRS2412 | ALXTRS2412 | 2.4 | 12 | 8 - 10 | 5 | 1000 |
| ALXTRS34 | ALXTRS34 | 3 | 4 | 0.5 - 1.5 | 6.3 | 500 |
| ALXTRS36 | ALXTRS36 | 3 | 6 | 1 - 3 | 6.3 | 500 |
| ALXTRS38 | ALXTRS38 | 3 | 8 | 3 - 5 | 6.3 | 500 |
| ALXTRS310 | ALXTRS310 | 3 | 10 | 5 - 7 | 6.3 | 500 |
| ALXTRS312 | ALXTRS312 | 3 | 12 | 7 - 9 | 6.3 | 500 |
| ALXTRS314 | ALXTRS314 | 3 | 14 | 9 - 11 | 6.3 | 500 |
| ALXTRS316 | ALXTRS316 | 3 | 16 | 11 - 13 | 6.3 | 500 |
| ALXTRS318 | ALXTRS318 | 3 | 18 | 13 - 15 | 6.3 | 500 |
| ALXTRS320 | ALXTRS318 | 3 | 20 | 15 - 17 | 6.3 | 500 |
| ALXTRS324 | ALXTRS324 | 3.2 | 4 | 0.5 - 1.5 | 6.7 | 500 |
| ALXTRS326 | ALXTRS326 | 3.2 | 6 | 1 - 3 | 6.7 | 500 |
| ALXTRS328 | ALXTRS328 | 3.2 | 8 | 3 - 5 | 6.7 | 500 |
| ALXTRS3210 | ALXTRS3210 | 3.2 | 10 | 5 - 7 | 6.7 | 500 |
| ALXTRS3212 | ALXTRS3212 | 3.2 | 12 | 7 - 9 | 6.7 | 500 |
| ALXTRS3214 | ALXTRS3214 | 3.2 | 14 | 9 - 11 | 6.7 | 500 |
| ALXTRS3216 | ALXTRS3216 | 3.2 | 16 | 11 - 13 | 6.7 | 500 |
| ALXTRS3218 | ALXTRS3218 | 3.2 | 18 | 13 - 15 | 6.7 | 500 |
| ALXTRS3220 | ALXTRS3220 | 3.2 | 20 | 15 - 17 | 6.7 | 500 |
| ALXTRS3225 | ALXTRS3225 | 3.2 | 25 | 17 - 22 | 6.7 | 500 |
| ALXTRS46 | ALXTRS46 | 4 | 6 | 0.5 - 2 | 8.4 | 500 |
| ALXTRS48 | ALXTRS48 | 4 | 8 | 2 - 4 | 8.4 | 500 |
| ALXTRS410 | ALXTRS410 | 4 | 10 | 4 - 6 | 8.4 | 500 |
| ALXTRS412 | ALXTRS412 | 4 | 12 | 6 - 8 | 8.4 | 500 |
| ALXTRS414 | ALXTRS414 | 4 | 14 | 8 - 10 | 8.4 | 500 |
| ALXTRS416 | ALXTRS416 | 4 | 16 | 10 - 12 | 8.4 | 500 |
| ALXTRS418 | ALXTRS418 | 4 | 18 | 12 - 14 | 8.4 | 500 |
| ALXTRS420 | ALXTRS420 | 4 | 20 | 14 - 16 | 8.4 | 500 |
| ALXTRS425 | ALXTRS425 | 4 | 25 | 16 - 21 | 8.4 | 500 |
| ALXTRS430 | ALXTRS430 | 4 | 30 | 21 - 26 | 8.4 | 500 |
| ALXTRS435 | ALXTRS435 | 4 | 35 | 26 - 31 | 8.4 | 500 |
| ALXTRS486 | ALXTRS486 | 4.8 | 6 | 0.5 - 1.5 | 10.1 | 500 |
| ALXTRS488 | ALXTRS488 | 4.8 | 8 | 1 - 3 | 10.1 | 500 |
| ALXTRS4810 | ALXTRS4810 | 4.8 | 10 | 3 - 5 | 10.1 | 500 |
| ALXTRS4812 | ALXTRS4812 | 4.8 | 12 | 5 - 7 | 10.1 | 500 |
| ALXTRS4814 | ALXTRS4814 | 4.8 | 14 | 7 - 9 | 10.1 | 500 |
| ALXTRS4816 | ALXTRS4816 | 4.8 | 16 | 9 - 11 | 10.1 | 500 |
| ALXTRS4818 | ALXTRS4818 | 4.8 | 18 | 11 - 13 | 10.1 | 500 |
| ALXTRS4820 | ALXTRS4820 | 4.8 | 20 | 13 - 15 | 10.1 | 500 |
| ALXTRS4822 | ALXTRS4822 | 4.8 | 22 | 15 - 17 | 10.1 | 500 |
| ALXTRS4825 | ALXTRS4825 | 4.8 | 25 | 17 - 20 | 10.1 | 250 |
| ALXTRS4830 | ALXTRS4830 | 4.8 | 30 | 20 - 25 | 10.1 | 250 |
| ALXTRS4835 | ALXTRS4835 | 4.8 | 35 | 25 - 30 | 10.1 | 250 |
| ALXTRS68 | ALXTRS68 | 6 | 8 | 1.5 - 2.5 | 12.6 | 250 |
| ALXTRS610 | ALXTRS610 | 6 | 10 | 2 - 4 | 12.6 | 250 |
| ALXTRS612 | ALXTRS612 | 6 | 12 | 4 - 6 | 12.6 | 250 |
| ALXTRS614 | ALXTRS614 | 6 | 14 | 6 - 8 | 12.6 | 250 |
| ALXTRS616 | ALXTRS616 | 6 | 16 | 8 - 10 | 12.6 | 250 |
| ALXTRS618 | ALXTRS618 | 6 | 18 | 10 - 12 | 12.6 | 250 |
| ALXTRS622 | ALXTRS622 | 6 | 22 | 14 - 16 | 12.6 | 250 |
| ALXTRS625 | ALXTRS625 | 6 | 25 | 16 - 19 | 12.6 | 250 |
| ALXTRS630 | ALXTRS630 | 6 | 30 | 19 - 24 | 12.6 | 250 |
| ALXTRS6410 | ALXTRS6410 | 6.4 | 10 | 2 - 4 | 13.4 | 250 |
| ALXTRS6412 | ALXTRS6412 | 6.4 | 12 | 4 - 6 | 13.4 | 250 |
| ALXTRS6414 | ALXTRS6414 | 6.4 | 16 | 6 - 10 | 13.4 | 250 |
| ALXTRS6418 | ALXTRS6418 | 6.4 | 18 | 10 - 12 | 13.4 | 250 |
| ALXTRS6420 | ALXTRS6420 | 6.4 | 20 | 12 - 14 | 13.4 | 250 |
| ALXTRS6425 | ALXTRS6425 | 6.4 | 25 | 14 - 19 | 13.4 | 250 |
| ALXTRS6430 | ALXTRS6430 | 6.4 | 30 | 19 - 24 | 13.4 | 250 |
